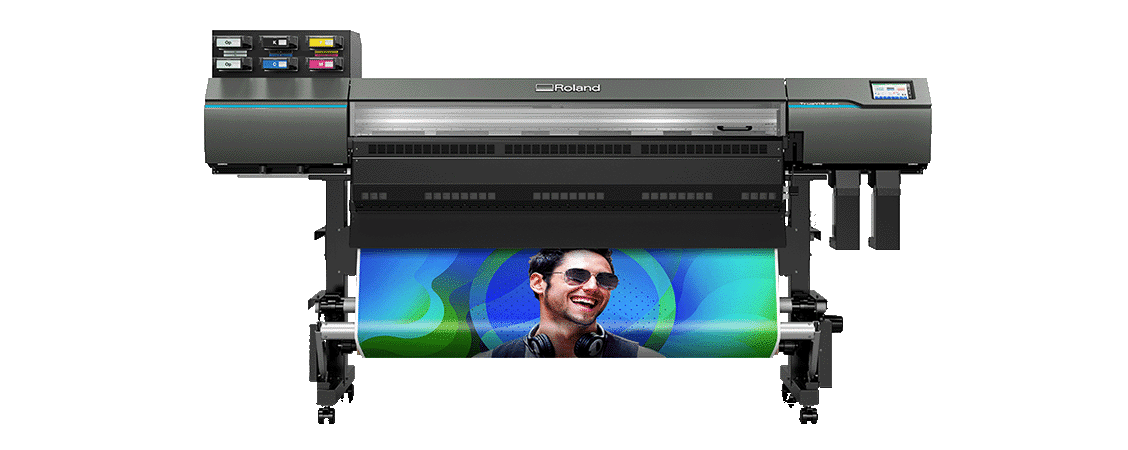

Roland TrueVIS AP-640 Resin/Latex Printer

  • $17,995.00


This item qualifies for fast & free shipping!

Premium 4-color large format resin/latex printer with fast drying inks, excellent durability and optimum usability.

Build and expand your sign and graphics business with a wide range of applications, low running-costs, and the quick drying benefits of Roland DG's first large format resin/latex printer.

  • Dual, staggered printheads with variable dot printing and True Rich Color presets offer natural, vibrant print results with higher color saturation
  • Water-based TrueVIS Resin Ink provides quick-drying, scratch-resistant, and safe results on a wide range of media
  • Legendary Roland DG machine reliability, service, and support now available in a resin ink printer

Resin Printing
Just Got So Much More Vivid and Exciting

Until now, resin/latex printing was associated with flat, uninspiring color. Enter the TrueVIS AP-640 that’s redefining resin printing with high color saturation on a wide range of materials from uncoated PVC to non-PVC media. It features new TrueVIS resin ink and advanced machine features to optimize color reproduction on vinyl, paper, film, and specially formulated fabrics — expanding your graphics to include flags, roll-up screens, textiles, wallpapers, and so much more.

TrueVIS Resin Ink

The highly concentrated color pigmentation of TrueVIS Resin Ink enables heavier color saturation than conventional resin inks and printers for optimum graphic impact on paper, fabric, canvas, wallpaper, non-PVC materials, and other media.

Safety Comes Standard

With very low VOC emissions, Roland DG resin inks are ideal for interior applications where safety and compliance are the highest priority.
True Rich Color

The True Rich Color preset takes full advantage of the high color saturation of new TrueVIS Ink to maximize print vibrancy and ensure neutral greys, smooth gradations, and natural skin tones.

Variable Dot Printing

TrueVIS large format resin/latex printers benefit from hundreds of dedicated, media-specific printing profiles that control optimal ink volume and drying temperature. An optimizer prepares the media surface facilitating the formation of precise dots while variable dot control technology fires three types of ink droplets to create unparalleled image quality, producing natural beauty and vividness never before seen in a resin ink printer.

Variable Dot Printing

Dual Staggered Printheads for Resin Inks

Printheads are arranged in a dual, staggered formation with an optimizer printhead that preps the media surface for the CMYK printhead. This enables ink droplets to form a finer dot, resulting in more precise color and images.

Touch-Panel Operation

A 7-inch, full-color touch panel with intuitive settings and functions makes print operations simple. Clearly defined icons for set-up, maintenance, print volume, consumables, print status, and more allow for a convenient, streamlined workflow.


Specifications 

TrueVIS AP-640
AP-640
Printing method Piezo ink-jet method
Media Width 10.2 to 64 in. (259 to 1,625 mm)
Thickness Max. 0.039 in. (1.0 mm) with liner
Roll outer diameter Max. 9.8 in. (250 mm)
Roll weight Max. 99 lb. (45 kg)
Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing width (*1) Max. 63.5 in. (1,615 mm)
Ink Type Resin ink 700 ml pouch
Colors Four colors (cyan, magenta, yellow, and black) and optimizer
Printing resolution (dots per inch) Max. 1200 dpi
Ink drying system (*2) Print heater set temperature: 77 to 113°F (25 to 45°C)
Dryer set temperature: 158 to 230°F (70 to 110°C)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Rated Input Printer: 200-240 Va.c. 50/60 Hz 3 A
Dryer 1: 200-240 Va.c. 50/60 Hz 10 A
Dryer 2: 200-240 Va.c. 50/60 Hz 10 A
Power consumption During operation Approx. 4,000 W
Sleep mode Approx. 65 W
Acoustic noise level During operation 69 dB (A) or less
During standby 53 dB (A) or less
Dimensions (Width x Depth x Height) 113.7 in. × 33 in. × 61.1 in. (2,886 mm × 836 mm × 1,550 mm)
Weight (with stand) 587 lb. (266 kg)
Environment (*3) During operation Temperature: 68 to 86 °F (20 to 30 °C),
Humidity: 20 to 80 %RH (no condensation)
Recommended Environment Temperature: 68 to 77 °F (20 to 25 °C),
Humidity: 40 to 60 %RH (no condensation)
Not operating Temperature: 41 to 104 °F (5 to 40 °C),
Humidity: 20 to 80 %RH (no condensation)
Included items Dedicated stand, power cords, dryers, media take-up unit, media holders, separating knife, replacement blade, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.



We strive to offer the lowest prices on all of our items!

Some advertised prices are limited by the manufacturer.

To request a specialized quote, please contact us.
