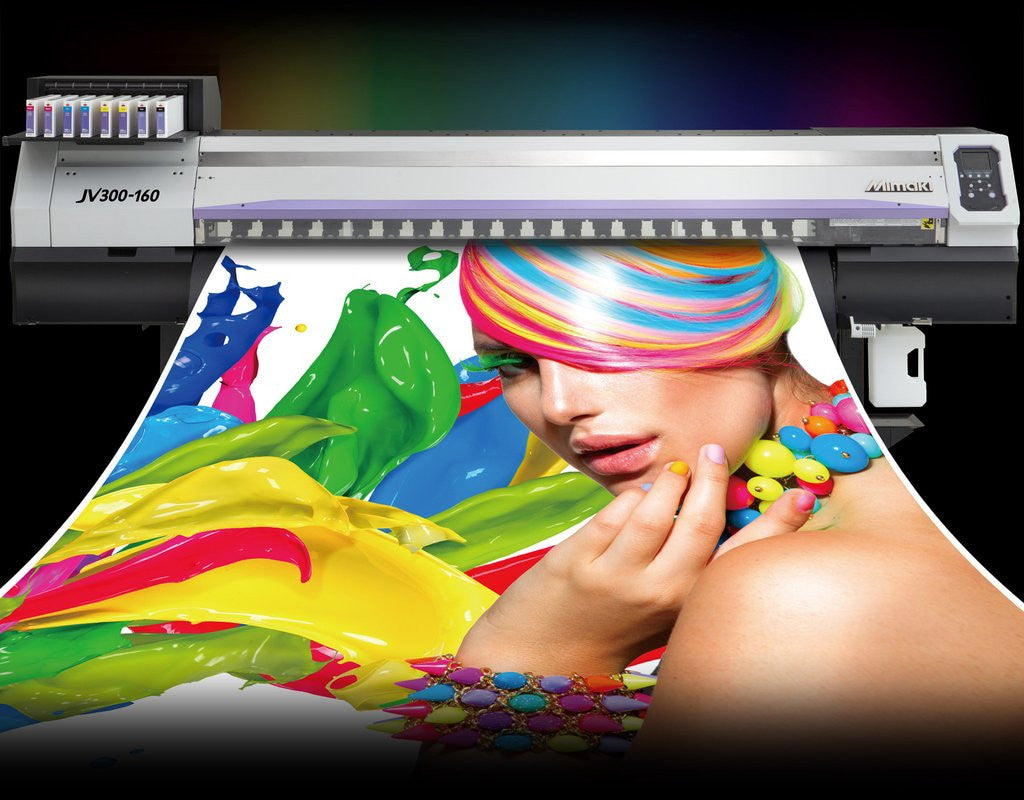

Mimaki JV300-160 Plus Printer

How to purchase

Due to the size and complexity of this product, please request a quote below to complete an order.

Request a quote

Call for details, including special pricing, installation, and servicing. 510.238.8905
Mimaki inks available online at Bayinkjet.com »

Delivers Stunning Quality At Class-Leading Speeds

Grow your business with these roll-based machines that offer increased throughput and a lower cost of operation. Choose eco-solvent inks to create an array of sign and graphic applications. Or dye-sublimation inks for textile, apparel and soft signage production.
  • Available in 64” with print speeds up to 1,140 SqFt/Hr
  • Choice of eco-solvent ink or dye-sublimation ink sets

Eco-solvent: 8 color options including White, Orange and Light Black inks

Dye-sublimation: 6 color options including Light Blue and Light Magenta inks

  • Economical 2-liter bulk ink system for long running jobs
  • Even ink drying with three-way intelligent heater
  • Reusable Mimaki Eco-Cartridge on SS21, BS3 and BS4 eco-solvent inks
  • Automatic media take-up reel
  • USB/Ethernet connectivity
  • RIP software RasterLink6 included

Specifications

Printhead

Two on-demand piezo heads in a staggered array

Print resolution

360dpi, 540dpi, 720dpi, 1,080dpi, and 1,440dpi

Print speed (4 color mode)

JV300-160 Plus: up to 1139.898 SqFt/Hr (105.9 m2/h)

Maximum Print Area

JV300-160 Plus: 63.4″ (1610 mm)

Maximum media width

JV300-160 Plus: 63.8″ (1620 mm)

Maximum Media Thickness

up to 0.04″ (1 mm)

Maximum Media Weight

99 lbs. (45 kg)

Ink Type

U.S. & Canada- SS21, ES3, Sb54 | Mexico, Central & South America- SS21, ES3, BS3, BS4, Sb54

Interface

Ethernet, USB 2.0

Power supply

Single-phase (AC100 – 120V / AC200 – 240V) x2

Power consumption

AC100V: 1.44kW or less x2 | AC200V: 1.92kW or less x2

Operational environment

Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

JV300-160 Plus: 109″ x 28″ x 55″ (276.9 x 71.1 x 139.7 cm)

Weight

JV300-160 Plus: 441 lbs. (200 kg)

Certifications

VCCI class A, FCC class A, ETL UL 60950-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM

Inks

Solvent ink (SS21) Cyan Magenta Yellow Black Light Cyan Light Magenta Light Black Orange White
2L MBIS Pack* SPC-0588C SPC-0588M SPC-0588Y SPC-0588K SPC-0588LC SPC-0588LM SPC-0588LK SPC-0588OR
220ml cartridge SPC-0504W-2
600ml eco cartridge SS21-C-60 SS21-M-60 SS21-Y-60 SS21-K-60 SS21-LC-60 SS21-LM-60 SS21-LK-60 SS21-OR-60



Eco Solvent ink (ES3) Cyan Magenta Yellow Black Light Cyan Light Magenta Light Black Orange White
440ml cartridge SPC-0440C SPC-0440M SPC-0440Y SPC-0440K SPC-0440LC SPC-0440LM
220ml cartridge SPC-0433W-2



Dye Sublimation ink (Sb54) Blue Magenta Yellow Black Light Blue Light Magenta
2L MBIS Pack* SB54-BLT-2L SB54-MT-2L SB54-YT-2L SB54-KT-2L SB54-LBT-2L SB54-LMT-2L
440ml cartridge SB54-BLT-44 SB54-M-44 SB54-Y-44 SB54-K-44 SB54-LBL-44 SB54-LMT-44



Solvent ink (BS3) Cyan Magenta Yellow Black
2L MBIS Pack* SPC-0693C SPC-0693M SPC-0693Y SPC-0693K
600ml cartridge SPC-0667C SPC-0667M SPC-0667Y SPC-0667K



Solvent ink (BS4) Cyan Magenta Yellow Black
2L MBIS Pack* BS4-C-2L BS4-M-2L BS4-Y-2L BS4-K-2L
600ml cartridge BS4-C-60 BS4-M-60 BS4-Y-60 BS4-K-60

*Inks sold vary by county, see specification chart above for details.
