USED Mimaki UJF-7151 UV Flatbed Printer (<1yr old, warranty included)

  • Contact us for quote


  • This item qualifies for fast & free shipping!

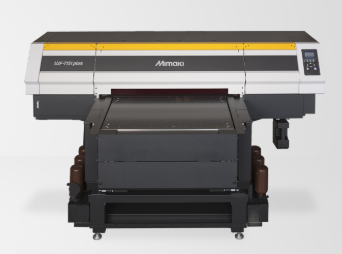

    Mimaki UJF-7151 UV Flatbed Printer @ negotiable price (call or make offer / inquiry). Less than one year old. Warranty still valid. Located in Modesto CA.

    Call for details, including special pricing, installation, and servicing. 510.238.8905
    Mimaki inks available online at Bayinkjet.com »

    Most robust small format UV-LED flatbed on the market

    This state-of-the-art model is geared for on-demand printing. Both its compact size and full line of features are ideal for creating specialty graphics or signage; or for customization, manufacturing and just-in-time production.
    • Print area of 28” x 20”; up to 6” thick
    • Print on a variety of substrates, including plastic, metal, wood, leather and glass
    • Enclosed print area reduces dust contamination and UV exposure
    • All ink channels offer Mimaki Circulation Technology
    • Automated head height control
    • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
    • Pair with our desktop 3D printer to produce jigs, molds for thermoforming or custom models
    • RIP software RasterLink6 included
    Printhead

    Six on-demand piezo heads in a staggered array

    Print Resolutions

    1,200 dpi

    Print Speed (4 Color Mode)

    up to 5.2 min / bed SqFt/Hr (5.2 min / bed m2/h)

    Maximum Print Area

    27.9″ x 20.0″ (710 × 510 mm)

    Maximum media width

    28.7″ (730 mm)

    Maximum Media Thickness

    up to 6.02″ (153 mm)

    Maximum Media Weight

    22.0 lbs. (10.0 kg)

    Ink Type

    U.S. & Canada- LH-100, LUS-120, LUS-350 | Mexico, Central & South America- LH-100, LUS-120, LUS-350

    Interface

    Ethernet 1000BASE-T, USB2.0 Hi-speed

    Power Supply

    Single-phase AC100 – 120V / AC200 – 240V

    Power Consumption

    AC100V: 1.3kW or less

    Operational Environment

    Temperature 59° – 86° F (15-30° C)
    Humidity: 35–65 % RH (Non condensing)

    Dimensions (W × D × H)

    86.34″ x 61.89″ x 50.12″ (219.3 x 157.2 x 127.3 cm)

    Weight

    698.87 lbs. (317 kg)

    Certifications

    VCCI class A, FCC class A, ETL UL 60950-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star

      Mimaki UJF-7151 UV Flatbed Printer



      We strive to offer the lowest prices on all of our items!

      Some advertised prices are limited by the manufacturer.

      To request a specialized quote, please contact us.
