SUMMER SPECIAL: Take advantage of a $200 Instant Rebate on TM-200 for a limited time!

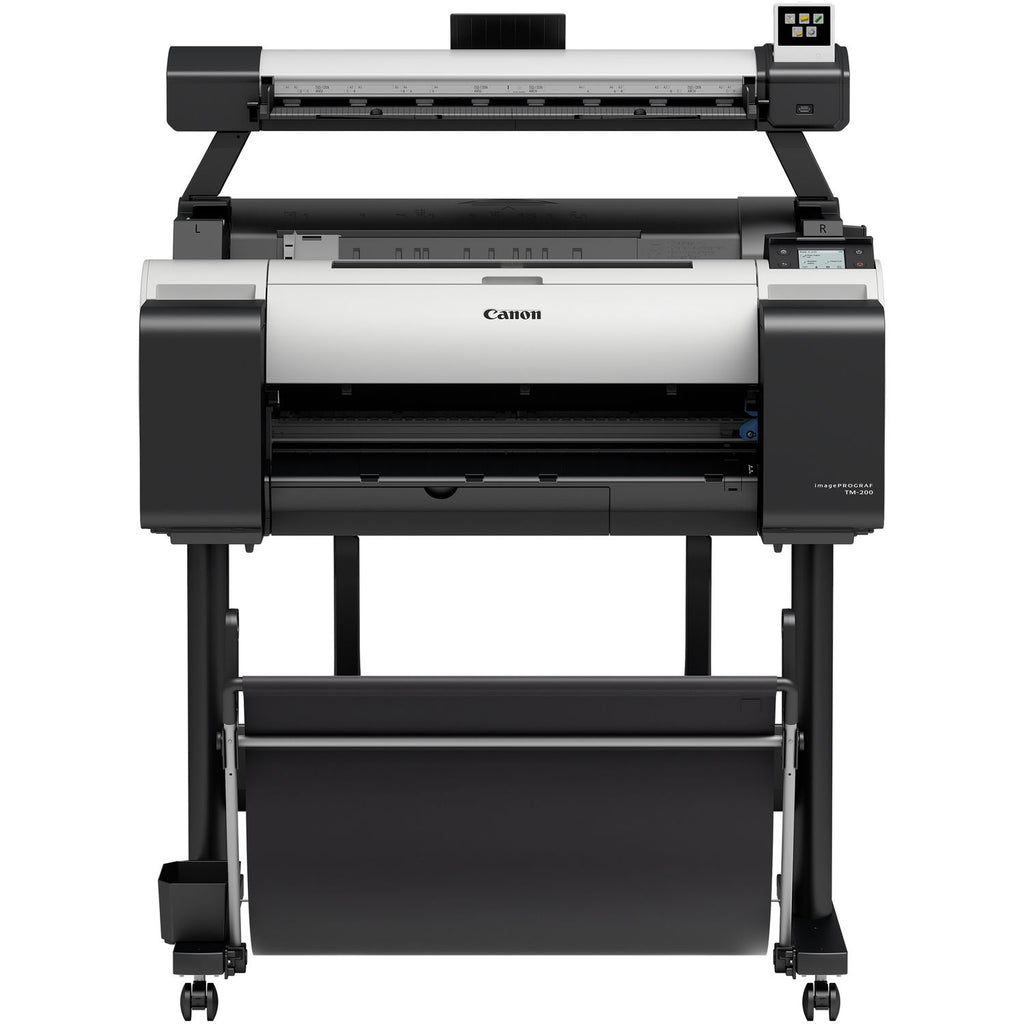

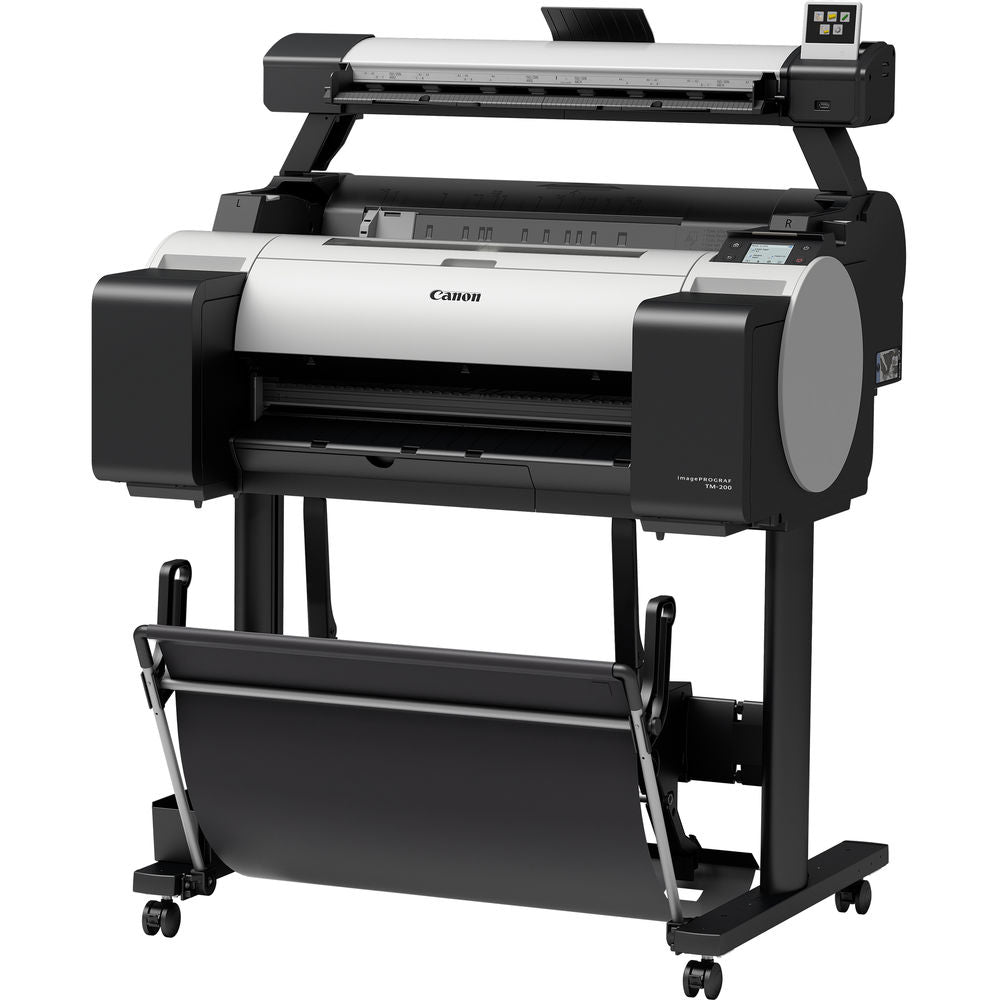

The Canon imagePROGRAF TM-200 MFP L24ei, large format imaging system is an affordable scan-to-copy/file system for low volume and entry-level users. With a 24 inch scanner, this MFP is designed for architects, engineers, consulting firms, small offices and K-12 schools that require a minimal learning curve when it comes to new equipment. Suitable for K-12 schools, this low cost model makes it possible for schools to purchase an MFP that was once at a higher price point. Schools can now create and print professional posters quickly and easily at a fraction of what it would cost to outsource. This is the ideal system for those who do not require the advanced functionality of the MFP T36 imaging system. The new Lei Series complements the current MFP T36 product line by providing a product that offers basic scan-to-copy capabilities at an affordable price. Not just offering scan-to-copy, this imaging system also gives you the ability to scan to USB, scan to copy and archive, scan to multipage PDF and scan to your PC as well as reduce and enlarge images. With three different quality modes available, you can choose Draft, Standard or Best mode based on the scan/print you are making. Scan-to-Copy/File Solution The TM-200 MFP L24ei is an affordable solution for providing easy-to-use scan-to-copy/file capabilities for the entry-level user. Designed for simple operation, this MFP has intuitive hardware and software making the learning curve minimal for those new to large format scanning. A versatile system built for the way you work, the imagePROGRAF TM-200 MFP L24ei includes:
- L24ei Scanner
- TM-200 24-inch Pigment Ink Printer
The L24ei scanner incorporates a SingleSensor assembly technology, which helps provide consistent and better color accuracy with more detail in the shadows and highlights than a staggered CIS array scanner2. Features
- Touch Screen Operation Panel
- 600 dpi optical resolution
- Image scanning of up to 24” wide, fits documents 26” wide
- Scanning speed of up to 3 inches per second monochrome, 1 inch per second color
- Scan length of up to 109"
- 3 Quality Modes: Draft, Standard and Best
- Scan documents up to .5 mm thick
- Face up / Rear exit
- Straight paper path
TM-200 Large Format Printer
The TM Series is redefining what a Large-format printer is capable of. The TM-200 printer is not only ideal for printing technical documents, CAD drawings and GIS maps, but also posters, signage and displays with the use of Canon's LUCIA TD water resistant pigment ink. Built with Canon developed technologies; 5-color LUCIA TD pigment ink, PF-06 print head, L-COA PRO image processor, along with a clear, intuitive operation panel and nearly 60% quieter than previous models, this printer is an easy choice for the architectural, engineering and construction industries as well as office environments.
LUCIA TD Pigment Ink Set
The TM-200device features an all-new 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Available in 130 ml or 300 ml ink tanks. 490 ml of ink ships standard with the TM-300.
With faster printing of multipage files, the TM Series can print up to 144 D sized prints per hour!
The TM Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information:
- 802.1x Authentication
- Panel Lock by Remote UI
- Remote UI Multilevel
- Hide IP From Panel
- Panel Access Control
- Job Storage and PIN Printing
- Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
- Secure File Erase
- The following functions can be disabled in administrator mode:
- Direct USB Thumb Drive Printing
- Internet Connection
- FTP and Telnet communication protocols
- Job Log Look-up
The TM-305 is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers and offers less distraction in the workplace.
The TM-305 features a 3" color touchscreen operation panel making it easy to view printer information as well as perform simple operations.
A good fit for small offices, the compact TM-305 has the smallest footprint for large format aqueous inkjet printer.
Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow - perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation.
Print Head PF-06
The 6-channel PF-06 Print Head is engineered to work with the printer's high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon's print-head technology that lays down ink with outstanding speed and accuracy. The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output (max.) with fine lines that are accurate to ±0.10% and as thin as 0.02mm.
Sub Ink Tank System
The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
What's in the Box
- imagePROGRAF TM-200
- Catch Basket
- 2"/3" Core Media Spool (Adaptors Included)
- US AC Power Cable
- Tools and Screws
- Print Head PF-06
- Maintenance Cartridge (Installed)
- 5 Ink Tanks (130 ml: MBK, 90 ml: C/M/Y/BK)
- Sample Heavyweight Coated Paper (A2/2 Sheets)
- Ethernet Card (built-in)
- USB 2.0 High-speed Interface
- USB Connection Sheet
- iWR Service Terms Leaflet
- User Manual
- Quick Setup Guide
- User Software CD for Windows (Printer Driver Utilities)
- PosterArtist Lite CD
- User Registration Card
- Media Guide
Printer Type5-Color 24-inch Printer
Number of NozzlesTotal: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch1,200 dpi
Non-firing nozzle detection and compensation
OS CompatibilityWindows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh OS X v10.10.5-v10.12x
Standard InterfacesUSB 2.0 High-Speed
Wireless LAN (IEEE 802.11 b/g/n)
Ink Droplet Size5 picoliter
Ink Capacity130 ml or 300ml per color
Ink Droplet SizePigment Ink
Color SetPigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram2 GB (Physical)
Media WidthCut Sheet - 8- 24
Roll Feed - 8 - 24
Maximum Roll Print LengthRoll Feed - 59' (18 meters)
Maximum Media Roll Diameter5.9 (150mm)
Borderless Printing Width8, 10, 12, 14, 16 17, 20, 24 B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm)
Paper Feed MethodRoll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top Loading, Front Output
LanguagesSGRaster, HPGL/2, HP-RTL, JPEG
Noise Level ApproxOperation: 44 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.0 Bels or less
Physical Dimensions42.0 x 38 x 34
Weightapprox.112 lbs (roll holder included, no inks, no print heads)
Power SourceAC-100-240V (50-60Hz)
Power ConsumptionMaximum: 69W or less
Standby 3.6W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating EnvironmentTemperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
Print Head (PF-06)Maintenance Cartridge (MC-31)Ink Tanks (PFI-120/PFI-320)Cutter Blade (CT-08)
TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor †Scanner Type: Contact Image Sensor (CIS) technology
Scan Accuracy: +/- 0.20%
Speed: 3 ips monochrome, 1 ips color (Copy, Standard Mode)
Optical Resolutions: 600 dpi
Max Resolutions: 600 dpi
Max. Document Size Width: 26 inch document width (24 inch image width)
Length: 109 inch
Standard Interface: (Scan to USB) USB 2.0 / (Scan to Network) Gigabit ethernet
