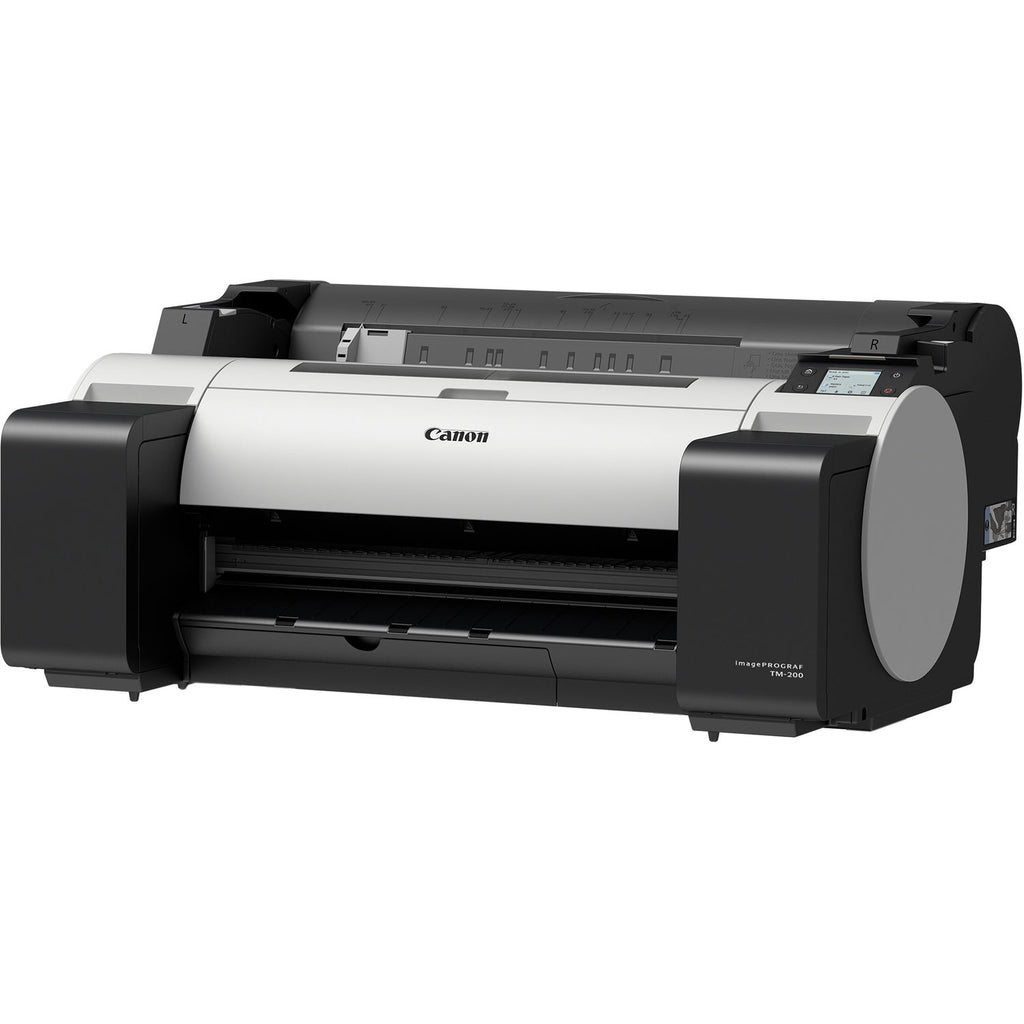

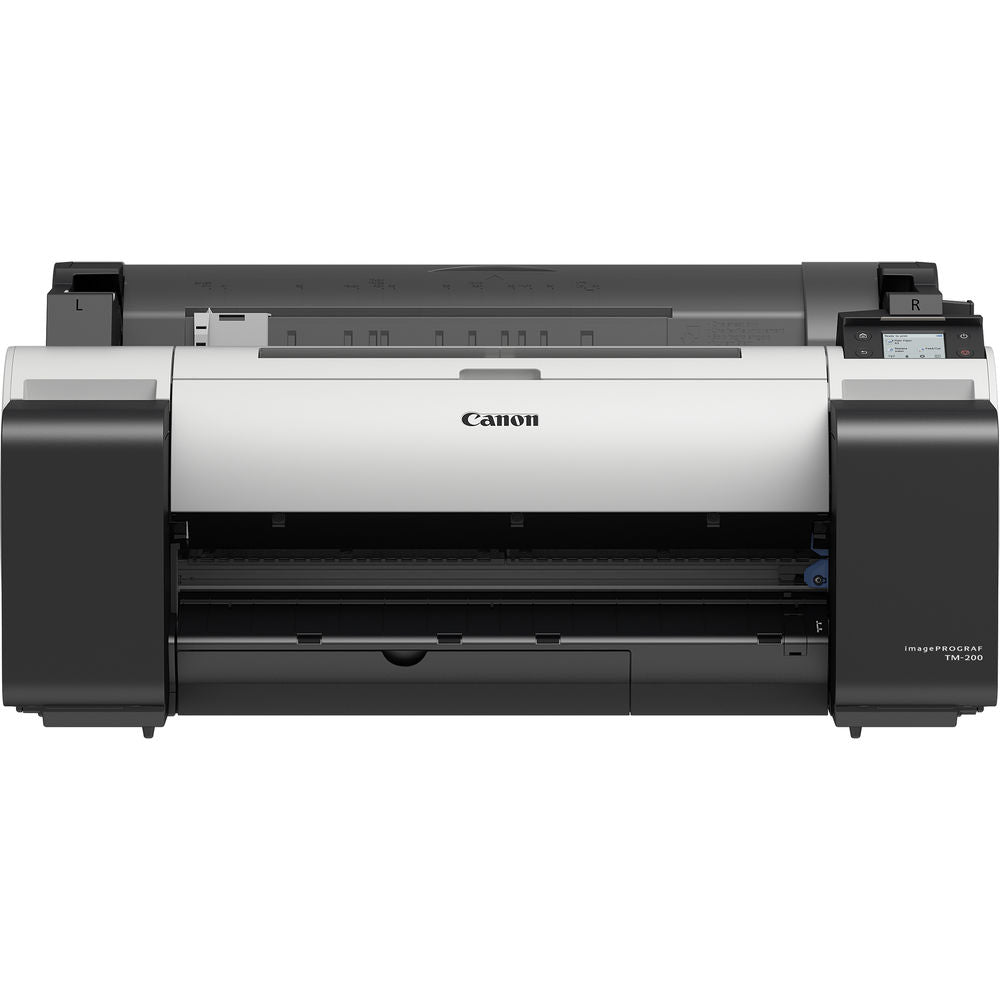

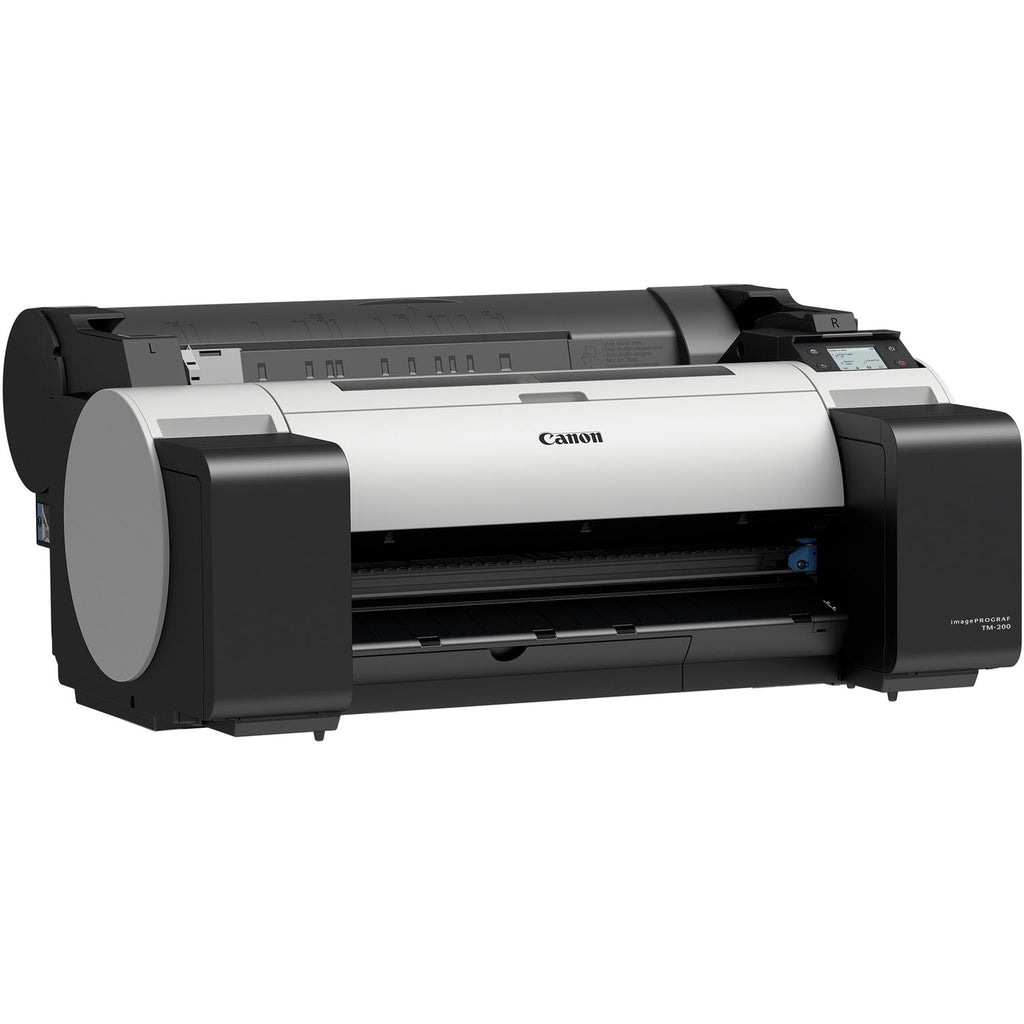

Canon TM-200 24" Plotter Printer w/o stand 3062C006AA
This item qualifies for fast & free shipping!
SPRING SPECIAL: Take advantage of a $225 Instant Rebate on TM-200 for a limited time.
Create stunning prints with the imagePROGRAF TM-200 24" Large-Format Inkjet Printer from Canon. Able to handle media up to 24" wide and with a maximum resolution of 2400 x 1200 dpi, users can create high-quality documents and graphics with sharp text at large-format sizes. Featuring a high-precision, high-density printhead, with a total of 15,360 nozzles, the printer lays down 5 picoliter size droplets that produce sharp lines and fine details for exceptional image quality.
Utilizing Canon's 5-Color Lucia Inks, the TM-200 is ideal for technical documents, CAD drawings, GIS maps, posters, signs, and displays, and the UV and water-resistant inks add a level of protection that can withstand many outdoor conditions, making the printer well-suited for creating and taking building plans onto construction sites. This also makes the printer an excellent option for posters, signs, and displays.
For operating the printer, a stand and a 3" color touchscreen are featured, and a dedicated USB port permits printing directly from a thumb drive. The printer has wired and wireless networking via Ethernet, and Wi-Fi connectivity, and it has USB 2.0 for simple connection to a computer. Additionally, the unit's Sub-Ink Tank System allows most of the available ink to be used before replacement, which eliminates wasted ink and saves on operating costs.
Precision meets advanced performance and productivity
The core technologies of the imagePROGRAF TM-200 deliver ultra-sharp lines and colour vibrancy for fast, easy large-format printing. With nearly 60% sound reduction and flush installation, it’s perfect for smaller offices with limited space.
Sharp & vivid
Even plain paper printing is high-quality with the 5-colour full pigment Lucia TD ink system.
Quick printing
Increase print output with the help of a 6-channel, 1.07-inch, optimised print head.
Small footprint
Compact, flush-fitting design with full front usability maximises available office space.
Quiet operation
Perfect for smaller offices – reduced vibrations and smoother processes make 60% less noise.
Agile software
Get production help from Direct Print & Share, PosterArtist Lite, Free Layout Plus, and more.
LUCIA TD Pigment Ink Set
The TM-200 device features an all-new 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Available in 130 ml or 300 ml ink tanks. 490 ml of ink ships standard with the TM-200.
Fast Printing
With faster printing of multipage files, the TM Series can print up to 144 D sized prints per hour1!
Security Feature2
The TM Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information:
Secure Communication
- 802.1x Authentication
- SNMPv3
- SSL/TLS
- IPSec
- Panel Lock by Remote UI
- Remote UI Multilevel
- Hide IP From Panel
- Panel Access Control
- Job Storage and PIN Printing
Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
The following functions can be disabled in administrator mode:
- Direct USB Thumb Drive Printing
- Internet Connection
- FTP and Telnet communication protocols
- Job Log Look-up
Quiet Operation
The TM-200 is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers and offers less distraction in the workplace.
Operation Panel
Small Footprint
A good fit for small offices, the compact TM-200 has the smallest footprint for a 24-inch large format aqueous inkjet printer.
Wi-Fi Compatible3
Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow - perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation.
Print Head PF-06
The 6-channel PF-06 Print Head is engineered to work with the printer's high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon's print-head technology that lays down ink with outstanding speed and accuracy. The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output (max.) with fine lines that are accurate to ±0.10% and as thin as 0.02mm.
Sub Ink Tank System
The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
24 seconds per A1 sheet
Ink type
Lucia TD 5-colour pigment ink
Operation panel
3.0-inch LCD colour touch screen
Print technology
Thermal Inkjet
Max print resolution
2400×1200 dpi
Compact body
982 x 887 x 1060 mm
Ink capacity
300 ml and 130 ml
Media thickness
0.07～0.8mm
- Printer
- 1 x print head
- 3-inch paper core attachment
- Power Cable
- UK Power cord (240V,3P)
- 1 set of starter ink tanks
- Set up guide
- Safety/Standard Environment leaflet
- User software CD-ROM (Win)
- PosterArtist Lite CD-ROM
- EU Biocide Sheet
- Eurasian Economic Union Sheet
- Important Information Sheet
