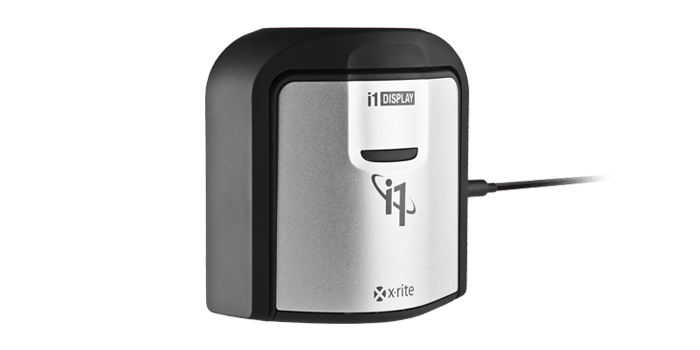

X-Rite i1Display Pro Color Display Calibration(MPN: EODIS3 420-010­090)

  • $255.00
  • $279.00


  • Orders over $500 qualify for fast & free shipping!

    i1Display Pro is the perfect combination of unrivaled color precision, speed and controls for the highest level of on-screen color accuracy, including mobile devices and projectors.

    A New Standard of Color Perfection

    The i1Basic Pro 2 is the industry standard for Color Perfectionists looking for an affordable, professional-level spectral color measurement solution offering display and projector profiling, monitor and print quality assurance and spot color measurement. With the i1Basic Pro 2, you can quickly and easily create custom monitor and projector profiles that ensure the colors you view are true, verify soft proofs and print quality with built-in Quality Assurance (QA) tools, and easily capture and manage spot colors. Plus, with the free ColorTRUE mobile app, you can even calibrate your Apple® iOS mobile devices.

    The i1Basic Pro 2 is designed for imaging professionals who rely on accurate color for their displays and projectors, who want to track and verify monitor and print quality, and who need to capture spot color measurement. It calibrates and matches multiple displays, including up to four displays connected to a single computer as well as unlimited multiple monitors connected to different computers for consistent color viewing.

    Benefits:

    • Top-of-the-line i1Profiler color management software offers the ultimate in flexibility and control. Basic mode offers a wizard driven interface with predefined options for the quickest path to professional on-screen color. Advanced mode offers user-defined options for more sophisticated profiling workflows to deliver the highest quality color results on monitors and projectors, as well as display testing and quality assurance tools.
    • Better temperature stability and higher brightness levels improve emissive measurement, resulting in the best possible calibration and profiling of monitors and projectors.
    • Provides full support for the latest video standards, including NTSC, ITU-R-Rec.BT.709 and PAL SECAM broadcast video standards.
    • Included PANTONE Color Manager software enables accurate capture and management of spot colors and helps users build palettes of best match PANTONE colors that are auto-extracted from their own images.
    • Easily upgrade to i1Publish software to add complete printer (RGB, CMYK, CMYK + any four) profiling and quality control functionality, and camera profiling capabilities. For increased automation, use the optional i1iO automated hands-free chart reader or add an i1iSis 2 automated chart reader for creating printer profiles.

    Built upon the success of X-Rite’s i1Pro spectrophotometer as the de facto industry standard for more than a decade, i1Pro 2 features the next generation of industry-leading technology delivering increased accuracy, ease of use and an expanded professional-level feature set including the latest developments in ISO standardization. The i1Pro 2 is equipped with the X-Rite Graphic Arts Standard (XRGA) to make it faster and easier for companies and professionals involved in digital production printing to adhere to ISO standards and have confidence that data sent or received from all links in the supply chain are reliable and repeatable, reducing waste and rework. It provides real-time user feedback to ensure accurate measurement and a self-check tool that adjusts and corrects for minor shifts.

    i1Basic Pro 2 includes the i1Pro 2 Spectrophotometer; the latest release of i1Profiler Software; PANTONE Color Manager Software; and robust i1 accessories (Ambient Light Measurement Head, Monitor Holder, Scanning Ruler, Backup Board, Spot Color Positioning Target, Soft Carrying Case)

    Short Term Repeatability - White Reflectance: 0.1 ∆E94*  (D50,2°, mean of 10 measurements every 3 seconds on white)
    Measurement Geometry 45°/0° ring illumination optics, ISO 13655:2009
    Inter-Instrument Agreement 0.4 ∆E94* average, 1.0 ∆E94* max. (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º))
    Illumination Spot Size 3.5 mm (0.14”)
    Light Source Gas filled tungsten (illuminant type A) and UV LED
    Measurement Conditions • UV included - ISO 13655:2009 measurement condition M0
    • D50 - ISO 13655:2009 measurement condition M1
    • UV excluded Filter - ISO 13655:2009 measurement condition M2
    Measurement Frequency in Scanning Mode 200 measurements per second
    Minimal Media Thickness 3 mm (0.12”) on backup board
    Patch Size Minimal Patch Size in Scanning Mode: 7 x 10 mm (0.28” x 0.39”) (Width x Height) with sensor ruler 10 x 10 mm (0.39” x 0.39”) (Width x Height) without sensor ruler
    Photometric Range 10nm; Sampling interval 3.5nm
    Spectral Analyzer i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array
    Spectral Range 380 - 730 nm
    Spectral Reporting 380 ... 730 nm in 10 nm steps
    Supported Profile Format ICC
    Aperture Measurement aperture: 4.5 mm (0.18”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)
    Unit Color Silver/Black
    Dimensions (length, width, height) i1Pro device: 155 mm x 66 mm x 67 mm (6.1” x 2.6” x 2.6”)
    i1 Ruler: 337 mm x 102 mm (13.3” x 4.0”)
    i1 Backup Board: 355 mm x 265 mm (14.0” x 10.4”) folded or 355 mm x 400 mm (14.0” x 15.7”) unfolded
    Weight i1Pro device: 245 g (8.6 oz)
    Package Dimensions (length, width, height) 13.7" x 6.1" x 17.0" / 348 mm x 155 mm x 434 mm
    Shipped Weight 9.898 lbs / 4.490 kg
    Communication Interface USB 1.1
    Experience Level Intermediate to Advanced
    Languages Supported Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
    Software Development Kit Available for OEM customers
    Software Modes Basic & Advanced
    User Experience Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results
    Calibration Manual on external ceramic white reference
    Measurement Background white, ISO 13655:2009; for measurements on backup board
    Mobile Device Compatibility iOS
    Optical Brigtener Compensation (OBC) Optical Brightener Compensation (OBC) with i1Profiler software
    Warranty Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.
    What's Included? i1Pro 2 spectrophotometer (measurement device), calibration plate, ambient light measurement head, monitor holder, positioning target, scanning ruler, backup board, USB cable, i1Profiler v1.x software for monitor profiling plus QA for monitors and printers, PANTONE Color Manager software and soft-sided storage case. FreeColorTRUE mobile app download from iTunes® App Store.
    Macintosh MacOS X 10.7.x, 10.8.x, 10.9.x, 10.10.x, or 10.11.x (with latest upgrades installed)
    Windows Windows 7, 8, 8.1, 10 (with latest Service Pack installed)
    Available Disk Space 500MB (depending on components installed)
    Connectivity Powered USB port

    WINDOWS: Network adaptor installed and driver loaded
    Display Resolution 1024x768 pixels or higher
    Internet Connection Required for software install, download and automatic update
    Memory 512MB RAM (2GB recommended)
    Number of Displays Supported per Workstation 4
    Optical Drive DVD Drive or Internet Connection
    Processor MAC: Intel® Core 2 Duo CPU or better; WINDOWS: Intel® Core 2 Duo or AMD Athlon™ XP or better
    Security User must have Administrator rights to install and uninstall the application
    Video Card MAC: Latest drivers for video card installed; WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
    Compatible iOS Devices Compatible with Free ColorTRUE Mobile App:
    • iPad 2, 3rd gen, 4th gen, Air, Mini, & Mini 2nd gen running iOS 7.x or later
    • iPhone 4, 4S, 5, 5c, & 5s running iOS 7.x or later
    • iPod Touch running iOS 7.x or later



    Product #: EODIS3 420-010­090 8008450003

    X-Rite i1Display Pro Color Display Calibration (EODIS3) (MPN: EODIS3 420-010­090)



    We strive to offer the lowest prices on all of our items!

    Some advertised prices are limited by the manufacturer.

    To request a specialized quote, please contact us.
